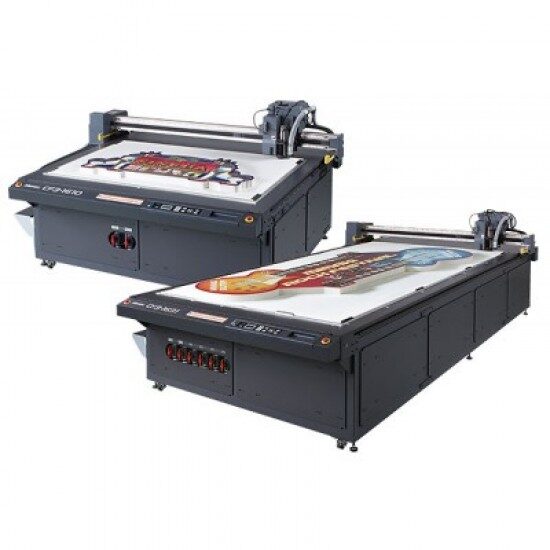

Product Description

Equipped with a newly developed router head to cut up to 50mm (2”)* in thickness.
Cuts a wide range of materials with high accuracy

Supports both small and large size media up to 1.6m x 3.1m (63″ x 122″). Even difficult acrylic or aluminum composite panels can be cut with consistently high accuracy. User exchangeable cutting heads to suit a wide range of conditions widen your possibilities greatly.

CF3-1631	CF3-1610
Effective cut area		1,600 x 3,100mm (63″ x 122″)	1,600 x 1,000mm (63″ x 39.3″)
Head drive method		X.Y,Z.θ DC servo, special timing belt
Maximum speed		50cm (19.6”)/s
Maximum acceleration		0.5G
Static accuracy	Repeatability	±0.15mm
	Distance	±0.1mm,or ±0.1% whichever is greater
	Origin repeatability	±0.15mm
Maximum cut depth		Router : 50mm (1.96″), Tangential cutter : 10mm (0.39″), Reciprocating cutter : 20mm (0.78″)
Maximum media thickness		Router : 50mm (1.96″), Tangential cutter : 30mm (1.18″), Reciprocating cutter : 20mm (0.78″)
Material clamp		Vacuum system with blower
Command		MGL-II c3 (MGL-IIc)
Interface		USB, RS-232C
Main unit power supply		200V~240V, Single phase 50/60Hz Less than 6A
Dust collector power supply		AC100V-120V, Single phase 50/60Hz, Less than 15A AC200V-240V, Single phase 50/60Hz, Less than 10A
Blower power supply		AC200V-240V, Single phase 50/60Hz, Less than 30A per unit
Dimensions (WxDxH)		2,250 x 4,120 x 1,320mm (88.6″ x 162.2″ x 52.0″)	2,250 x 1,860 x 1,320mm (88.6″ x 73.3″ x 52.0″)

Some of the sample images in this website are artificial renderings.
All specifications and designs displayed in this website are subject to change without prior notice.
Company names and product names written in this website are trademarks or registered trademarks of their respective owners.

Model

CF3-1610M	Effective cutting area: 1,600 x 1,000 mm (63.0 x 39.3″)
CF3-1610R1	Effective cutting area: 1,600 x 1,000 mm (63.0 x 39.3″)
CF3-1610TF2	Effective cutting area: 1,600 x 1,000 mm (63.0 x 39.3″)
CF3-1631M	Effective cutting area: 1,600 x 3,100 mm (63.0 x 122.0″)
CF3-1631R1	Effective cutting area: 1,600 x 3,100 mm (63.0 x 122.0″)
CF3-1631TF2	Effective cutting area: 1,600 x 3,100 mm (63.0 x 122.0″)
