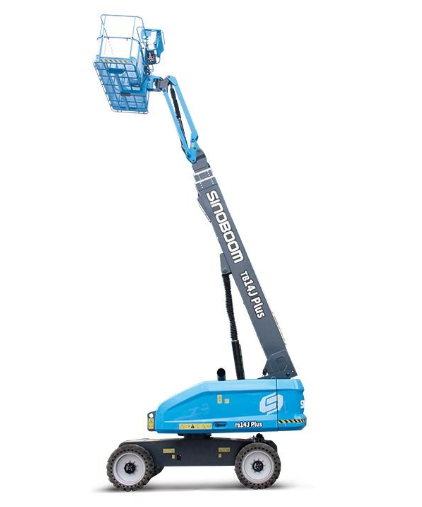

The TB14J Plus offers a 16.1m working height with seamless 360° rotation for ultimate flexibility. Its proportional control system ensures smooth, accurate movements even when fully extended. With 10.9m outreach, 454kg platform capacity, and 4WD, it’s ready for demanding sites.

Highlights

• Active Oscillation for Stability
• 40% Gradeability with 4-Wheel Drive
• Fast Setup, Easy Relocation

Technical specification

• Reference Number- AMH208
• Working hours- 0 hrs
• Operating weigh (kg)- 7,300 Kg
• Engine Output- 18.5 kW
• Max Number of Operators- 3
• Working Height- 16.1 m
• Platform Capacity- 454 kg
• Max Horizontal Extension- 10.9 m
• Power- Diesel engine
• Drive × Steer- 4WD × 2WS
• Turntable Rotation- 360 °/ Continuous
• Platform Rotation- 160°
• Gradeability- 40%

Features

• Excellent Rough Terrain Performance
• Easy Transport
• 7-inch display screen
• Automotive-grade sleeves for all pipes
• Weighing system
• Hydraulic platform leveling
• AC power to platform
• Emergency stop/lowering system
• Fault diagnosis system
• Telematics-ready connector
• Foam-filled non-marking tires
• Solid tires/Solid non-marking tires
• AC generator
